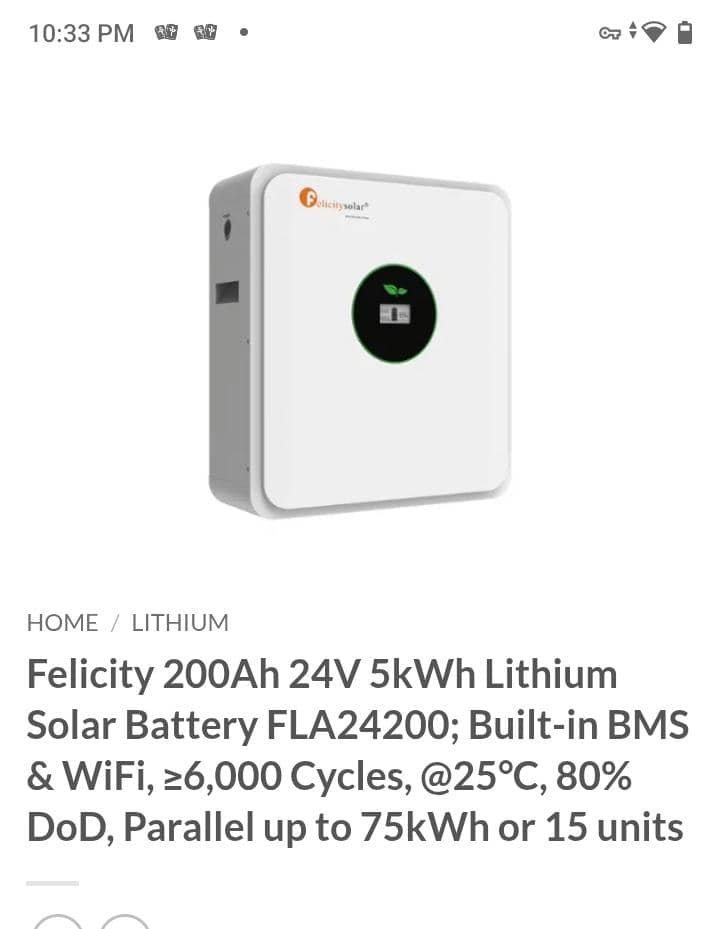

Felicity 200Ah 24V 5kWh Lithium Solar Battery FLA24200; Built-in BMS & WiFi, ≥6,000 Cycles, @25°C, 80% DoD, Parallel up to 75kWh or 15 units
Original price was: 4,000,000 UShs.3,300,000 UShsCurrent price is: 3,300,000 UShs.
-
Core Specifications
- Model: FLA24200
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Usable Capacity: 5 kWh
- Nominal Voltage: 25.6 V (for 24 V systems)
- Voltage Range: 22.4 V – 28.8 V
Performance
- Recommended Charge/Discharge Current: ≤ 120 A
- Recommended Power: ≤ 3,000 W
- Maximum 15-second Current: 150 A (3,750 W peak)
- Depth of Discharge (DoD): ≥ 95%
- Cycle Life: ≥ 6,000 cycles at 80% DoD
Integration & Protection
- Parallel Expansion: Up to 15 units (75 kWh total)
- Communication: CAN & RS-485
- Protection Features: Built-in BMS, breaker, fuse
- Ingress Rating: IP21
- Display: LCD + LED
Physical Details
- Dimensions: ~482 × 433 × 194 mm
- Weight: ~39 kg (net), ~44 kg (gross)
- Installation: Wall-mounted or floor-mounted
- Operating Temperature:
- Charging: 0 °C to +55 °C
- Discharging: –20 °C to +55 °C
Warranty
- 7 years
Felicity 200AH 24V 5kWh Lithium Solar Battery FLA24200
- Usable Capacity: 5 kWh
- Nominal Voltage: 51.2V
- Voltage Range: 48-57.6V
- MAX. Charge & Discharge Current: 100A @ 30S
- Recommended Charge & Discharge Current: ≤50A
- MAX. Output Power: 5000W
- Recommended Output Power: 2500W
- DOD: ≥95%
- Modules Connection: 1-6 in parallel
- Communication: CAN & RS485
- Ingress Protection: IP21
- Cycle Life: ≥6000 cycles @ 25°C, 80% DOD
- Working Temperature Range: Discharge: -20°C to +65°C, Charge: +0°C to +55°C
- Net Weight: 63KG
- Gross Weight: 76KG
- Product Dimension: 575 x 430 x 258 mm
- Package Dimension: 670 x 525 x 415 mm
- 5 years warranty
