Felicity 100Ah 24V 2.56kWh Lithium Solar Battery FLA24100; Built-in BMS & WiFi, ≥6,000 Cycles @25°C, 80% DoD, Parallel up to 37.5kWh or 15 Units

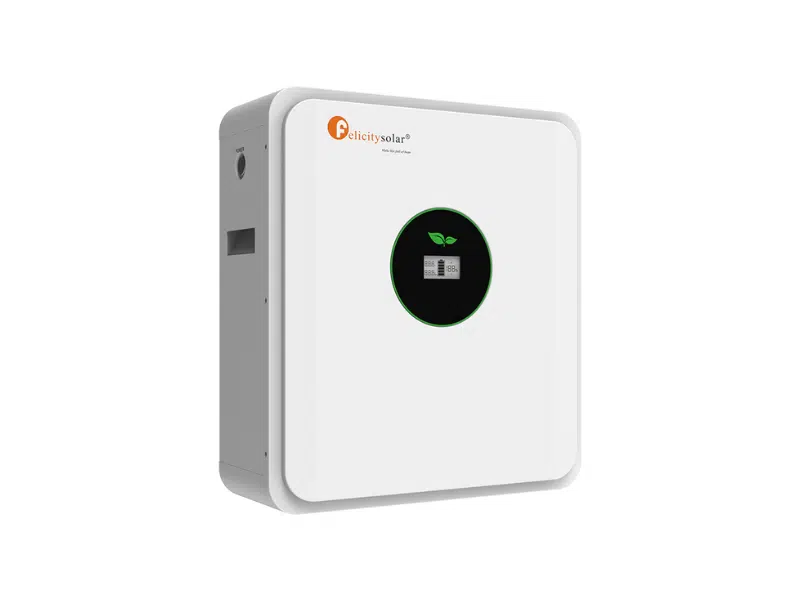

Felicity 100Ah 24V 2.56kWh Lithium Solar Battery FLA24100

• Installation: Wall-mounted or Floor-mounted
• Display: LCD + LED indicators
• Protection: Built-in smart BMS, breaker, and fuse
• Protection Level: IP21 (indoor use)
• Net Weight: 28kg
• Gross Weight: 31kg
• Product Dimensions: 454 × 380 × 154mm
• Package Dimensions: 525 × 445 × 225mm

Technical Specifications

• Model: FLA24100
• Capacity: 2.56kWh
• Battery Type: LiFePO₄ (Lithium Iron Phosphate)
• Nominal Voltage: 25.6V (24V system)
• Operating Voltage: 22.4V – 28.8V
• Recommended Charge/Discharge Current: ≤100A
• Recommended Charge/Discharge Power: ≤2,500W
• Maximum Charge/Discharge Current (15s): 150A
• Maximum Power (15s): 3,750W
• Depth of Discharge (DoD): ≥95%
• Cycle Life: ≥6,000 cycles @25°C, 0.2C, 80% DoD
• Scalability: Up to 15 units in parallel (38.4kWh total)
• Communication: RS485 / CAN, Built-in WiFi

Recommended Settings

• Max Charging Voltage: 28.8V
• Floating Charging Voltage: 28.8V
• Max Charging Current: 100A × N (N = number of batteries in parallel)
• Cut-off Voltage: 24V

Design & Usability

• Installation: Wall-mounted or Floor-mounted
• Display: LCD + LED indicators
• Protection: Built-in smart BMS, breaker, and fuse
• Protection Level: IP21 (indoor use)
• Net Weight: 28kg
• Gross Weight: 31kg
• Product Dimensions: 454 × 380 × 154mm
• Package Dimensions: 525 × 445 × 225mm

Operating Conditions

• Charging Temperature Range: 0°C – 55°C
• Discharging Temperature Range: –20°C – 55°C

Warranty

• 7 Years Standard Warranty
