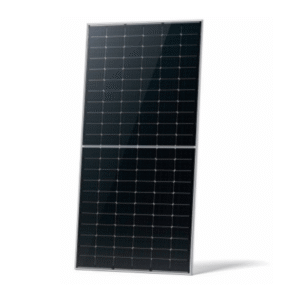

480‑Watt Monocrystalline Solar Panel JKM480N‑60HL4‑V; Voc 42.71V, Vmp 35.38V, Imp 13.57A, Isc 14.31A, Module efficiency of 22.24%

Name: 480‑Watt Monocrystalline Solar Panel JKM480N‑60HL4‑V; Voc 42.71V, Vmp 35.38V, Imp 13.57A, Isc 14.31A, Module efficiency of 22.24%
SKU: 2574
Availability: InStock

Original price was: 1,600,000 UShs.Current price is: 378,000 UShs.

High Efficiency: Up to 22.24% module efficiency for greater space savings and output.
N-Type Cell Technology: Offers lower degradation, higher performance in low-light conditions, and better reliability over time.
SMBB (Small Multi-Busbar) Technology: Enhances light absorption and current collection.
HOT 2.0 Technology: Reduces light-induced degradation (LID) and light/elevated temperature-induced degradation (LETID).
PID Resistance: Excellent anti-PID performance through advanced materials and process control.
Robust Design: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa.
Extended Lifespan: Backed by a 12-year product warranty and a 30-year linear power warranty (87.4% guaranteed output at year 30).

Category: Mono-Crystalline Panel

Description
Reviews (0)

Technical Specifications:

Model: JKM480N-60HL4-V
Rated Power (Pmax): 480 W
Module Efficiency: 22.24%
Cell Type: N-Type Monocrystalline
Number of Cells: 120 (6×20)
Maximum Power Voltage (Vmp): 35.38 V
Maximum Power Current (Imp): 13.57 A
Open-Circuit Voltage (Voc): 42.71 V
Short-Circuit Current (Isc): 14.31 A
Power Tolerance: 0 ~ +3%
Temperature Coefficient (Pmax): –0.29% / °C
Temperature Coefficient (Voc): –0.25% / °C
Temperature Coefficient (Isc): +0.045% / °C
Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
Operating Temperature Range: –40°C ~ +85°C
Maximum System Voltage: 1000 / 1500 VDC (IEC)
Maximum Series Fuse Rating: 25 A
Mechanical Specifications:
Dimensions: 1903 × 1134 × 30 mm
Weight: 24.2 kg
Front Glass: 3.2 mm tempered, anti-reflective, high-transmittance, low-iron glass
Frame: Anodised Aluminium Alloy
Junction Box: IP68 Rated
Output Cables: 4.0 mm²; (+) 400 mm, (–) 200 mm (Customisable)
